Final report for FNC18-1116

Project Type: Farmer/Rancher
Funds awarded in 2018: $7,493.00
Projected End Date: 02/28/2020
Grant Recipient: Cicero Farm Market
Region: North Central
State: Indiana
Project Coordinator:
Expand All

Project Information

Description of operation:

We are in our 6th year of producing chemical free vegetables on approximately 2 acres. I had been experimenting with woodchips for several years before we were awarded the grant.

Summary:

According to an April 29, 2017 article, written by Dr. Patrick Quillin, PhD, Rd, Cns, the majority of today’s farming soil is mineral deficient, farms are experiencing soil erosion and mineral depletion by leaching caused by irrigation. The soil has few microorganisms, earthworms or beneficial fungi. The constant applying of fertilizers or pesticides, whether commercial or organic is not building healthy soil, and is an added expense…………. When using woodchips as a renewable “waste” product, the issue of burning them or dumping them into landfills is avoided. Decomposing wood chips can become a viable way to create more fertile and productive soil. Using decomposing wood chips as a covering as well as a planting medium keeps the soil moist so less irrigation is required. As the wood chips continue to break down, the underlying soil becomes even more fertile with an abundance of life forms and there seems to be no negative reactions, example, toxicity or nutrient tie up. Using wood chips is economically sound (they are the natural waste/by-product of utility companies and landscapers trimming trees), less weeding is required and vegetable plants are less prone to disease.

Project Objectives:
  1. Show that decomposing woods chips improve the fertility of soil, less soil compaction is present, and soil moisture improves through biological, nutrient testing and soil meters
  2. Compare the productivity of sweet corn, green beans and potatoes. Amount of produce by weight and root mass of these vegetables will be recorded. One test plot with decomposing wood chips, one test plot plain ….
  3. Findings will be shared through website, social media and conference presentation

Research

Materials and methods:

We contacted one of our local tree trimming companies and they have been delivering wood chips for several years. We just let them set in a pile and decompose. Depending on how the chips will be used determines how long we let them decompose before moving them to the planting beds. Since we want to take advantage of the winter snow and rain on the wood chips, we apply an additional 3 to 4 inches of decomposing chips on our planting beds that already have chips on them. By applying more chips in the fall, the wood chip tea will feed the soil all winter.

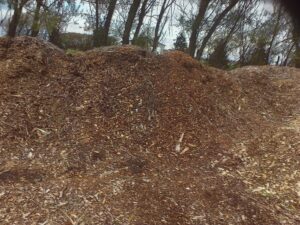

Our Pile of Free Wood chips from the tree trimming company.
Look closely and you can see 3 different shades of chips. The darker ones are the oldest and have had more time to decompose.

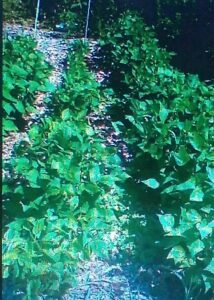

Mature beans with wood chip covering

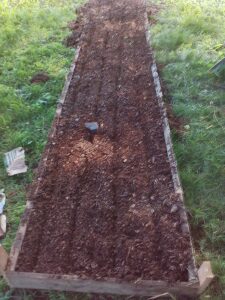

Raised bed with 2-year-old wood chips, ready for planting

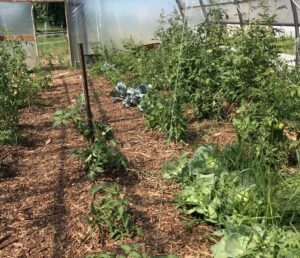

Wood chips in our high tunnel. Helps keep moisture in and weeds out.
This was a section that had not been planted in before. Once the corn was up 4 inches, we added wood chips around the plants and between the rows.

Here are some ways we are using wood chips in our no till, chemical free vegetable production.

1. Fresh chips for walkways in our high tunnels

2  We use chips that are at least 6 months or older for our established vegetable beds. We apply 3 to 4 inches of chips each fall. Sometimes we put down extra chips in early summer if some weeds are coming through.

3. 2-year-old decomposing chips can be directed planted into. We scattered carrots seeds on top of the chips and kept watered until carrots came up.



For a new garlic bed, we laid cardboard directly on the grass, and covered it with approximately 6 inches of 2-year-old decomposed chips. Yes the cardboard will kill the grass and decompose. In the picture you will notice two shades of wood chips; the darker chips are 2 years old, the lighter ones are several months old. We planted garlic directly into the 2-year-old darker chips and used the fresher ones for the paths.



Research results and discussion:

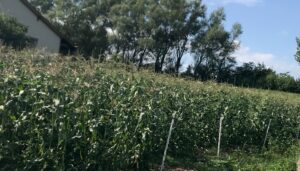

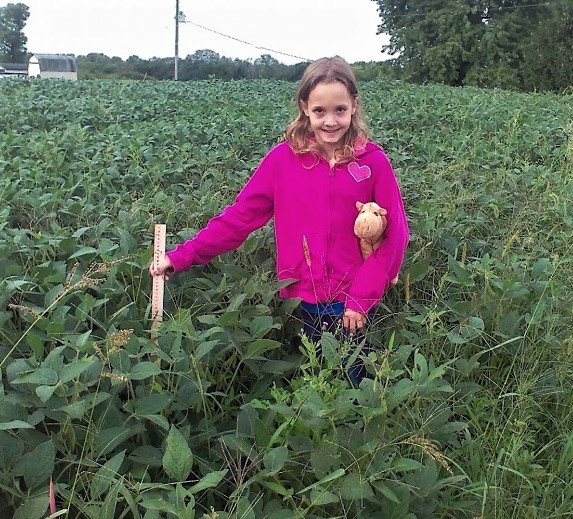

This is a picture of our old market garden plot. Some of the plot had the advantage of 3 years worth of decomposing wood chips and some of the area did not. This plot was planted into soybeans last year (2019). Notice the height of the beans in this first picture compared with the second picture below. The second picture clearly shows the beans in this section of the plot (where wood chips had previously been) are noticeably taller.
This is the section where wood chips had been decomposing for 3 years. Over a foot difference in height.

One of our goals was to measure the productivity of corn, green beans and potatoes. However, some of the sheets where the data was recorded were accidentally left in the field and were rained on. Next year I will put the data sheets in plastic so they will not get ruined, or better yet, buy a smart phone so the data can be voice recorded. Another goal was to take notice of the longevity of the plants. I did not notice any difference in the longevity of the potatoes or corn plants with or without chips. However, the green beans with the wood chips still had a few blossoms and baby green beans on the vines when the first frost came. To be honest, I forgot to take pictures of the root systems in the green beans, potatoes and corn.  I will make sure to put pictures here next year of the root systems with chips and without.  There was much learning this year and I am grateful this is a 2 year project!

Our ongoing 2nd year progress report

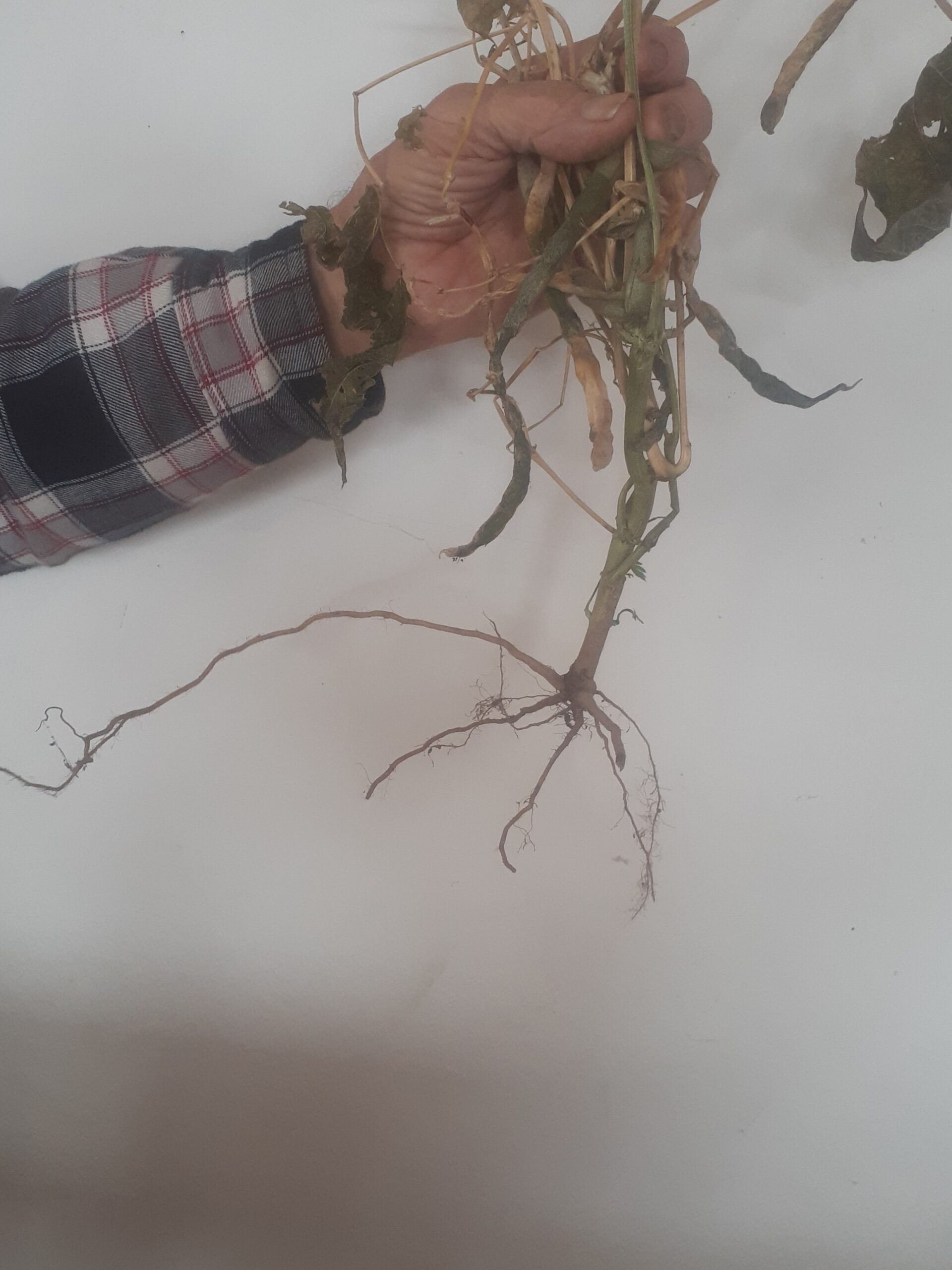

This is a picture of a green bean grown in the wood chips. Notice the longer roots and larger root mass.
This is a picture of the green bean roots that were grown without the benefit of woodchips. Notice how short the roots are.
This is a picture of a green bean that was grown without the advantage of the wood chips. Notice how short the roots are.

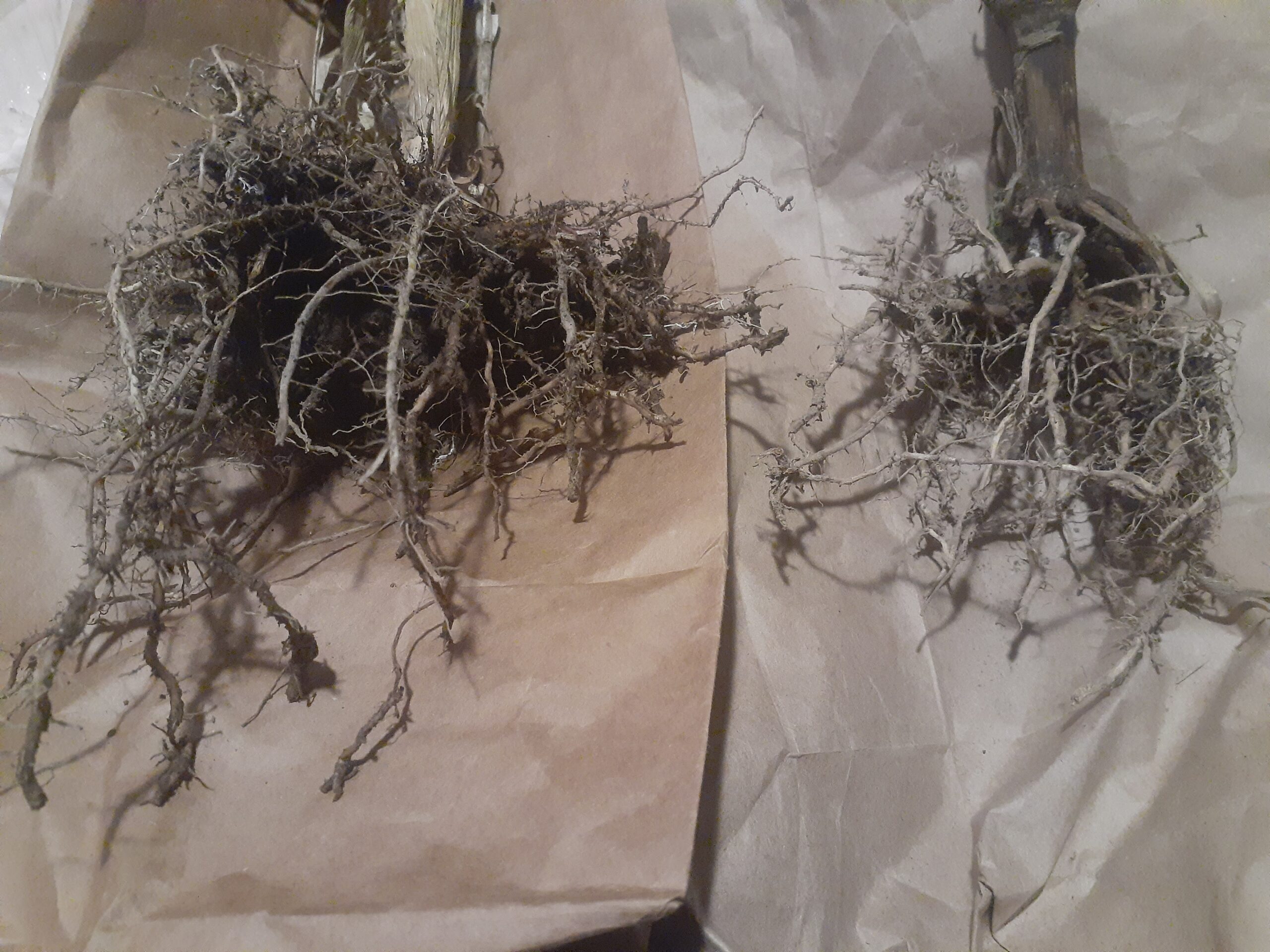

These are the results of the sweet corn roots. The one on the left was grown in wood chips and the one on the right did not have the advantage of wood chips. Results are very noticeable.

Growing in wood chips verses non wood chips.  In the above pictures, there is a noticeable difference in the length of the green bean roots and the larger root mass of the sweet corn.  Conclusion:  The longer the roots and the bigger the root mass, more nutrients are able to feed the growing plant. This results in a healthier plant and higher yields per plant.

Measured results of 2019 sweet corn

Without wood chips…..138 harvested ears         With wood chips……168 harvested ears

Measured results of 2019…..38 foot row of potatoes

Without wood chips……10 1/2 pounds             With wood chips……..13 1/2 pounds

Measured results of 2019…..16 foot row of green beans

Without wood chips….12 3/4 pounds                With wood chips….15 pounds

We had originally planted 5 times this amount of green beans, however, the rabbits ate them while we were on vacation.  Fortunately we were able to plant some late green beans in the high tunnel.  Even with a later planting, the wood chipped green beans out produced the non-wood chipped planting.

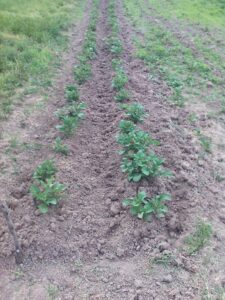

Potatoes grown without wood chips. This bed had to be hand hoed and hilled 3 times. Even then, some of the potatoes had sun damage (green skins). On the right side of the picture (that has yet to be hoed) you can see the weeds coming up along with the potatoes.

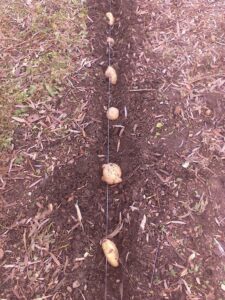

These potatoes have been planted in a wood chip furrow.
Potatoes just staring to break through the wood chips. Very few weeds and I only had to hill them once with extra chips, and little or no sun damage to the skins

       The following attachments show the Soil and Chemistry Analysis

Dec 2018 Chemistry Analysis with out woodchips

Dec 2018 Chemistry Analysis with woodchips

Dec 2018-Soil without wood chips

Dce 2018 Summary report

Dec 2018 Soil with woodchips

July 2019 Soil with woodchips

July 2019-Chemistry with woodchips

Oct 2019 Chemistry with woodchips

Oct 2019 Soil Biology with woodchips

While the above attachments show the details of the soil testing with wood chips and without, below is a sample of the exciting advantages of decomposing wood chips and increasing the mineral contents of the soil.

Without wood chips on soil                                         With 3 years of decomposing wood chips on soil
Test (ppm)                                                                      Test (ppm)
PH 6.8                                                                             PH 6.8
Texture Loam                                                                  Texture Silt Loam
Soluble Salts 0.11                                                             Soluble Salts 0.33
% Organic Matter 2.65                                                     % Organic Matter 11.95
Nitrates 4                                                                        Nitrates 15
Ammonium 2                                                                   Ammonium 4
Phosphorus 36                                                                 Phosphorus 38
Potassium 165                                                                 Potassium 162
Sulfur 7                                                                           Sulfur 9
Calcium 1904                                                                   Calcium 3162
Magnesium 155                                                                Magnesium 260
Ca:Mag ratio 12.1                                                             Ca:Mag ratio 12.1
Sodium 128                                                                     Sodium 39
Zinc 4.6                                                                           Zinc 7.7
Copper 0.9                                                                      Copper 0.7
Manganese 4                                                                   Manganese 7
Iron 98                                                                           Iron 49
Boron 0.3                                                                        Boron 0.4


One of my farmer friends told me the wood chips would pull all the nitrogen out of the soil. The testing shows quite the opposite  The results speak for themselves!









Participation Summary
1 Farmer participating in research

Educational & Outreach Activities

50 Consultations
50 Curricula, factsheets or educational tools
1 Journal articles
2 Webinars / talks / presentations
1 Workshop field days

Participation Summary

3 Farmers
2 Ag professionals participated
Education/outreach description:

A presentation was made through slides, and handouts to the July 2019 meeting of the Hamilton County, Indiana, Soil and Water Conservation District.  In the spring of 2020, we will be making a presentation for Hoosier organic’s.  Due to health issues, we were not able to hold the 2019 field day as planned.

Our production results were shared on our website and facebook page.  Our website is www.cicerofarmmarket.com and our facebook page is https://www.facebook.com/CiceroFarmMarket/ We also posted the results under my personal facebook profile:  Karen Carlisle.

Learning Outcomes

20 Farmers reported changes in knowledge, attitudes, skills and/or awareness as a result of their participation
Lessons Learned:

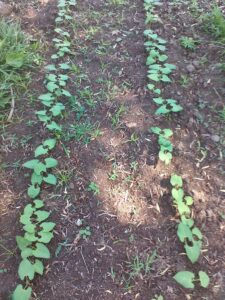

Green beans coming up without the advantage of a wood chip covering. Notice weeds.

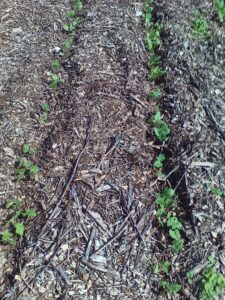

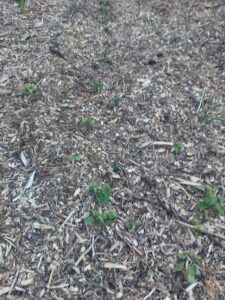

Green Beans coming up in a wood chip furrow

Several lessons learned this year.

1. If the weather is extremely warm when you plant potatoes or green bean seeds, and you are planting in a covering of woodchips, make sure to water until the potatoes/green beans seeds are up several inches. Then bring the extra chips up around the plants. This will help keep the moisture in the ground and feed the plants each time it rains.

2. Carrots can be directly sown on the top of wood chips that have been decomposing for at least 2 years. Just make sure to keep the chips lightly watered each day until the carrots come up. Usually 2 weeks

3. Adding a covering of 6-month-old wood chips in the fall is better than applying in the spring. Adding the wood chips in the fall allows for the snow and rain to release the wood chip tea into the soil.

4. Another advantage of adding the wood chips in the fall is saving time. In the areas that I had not covered with chips in the fall there was an abundance of weeds that I had to take the time to hand hoe.

Project Outcomes

1 Farmers changed or adopted a practice
Recommendations:

My 2-year research project with wood chips was just the beginning of showing how wood chips can improve the mineral content and soil biology.  Imagine the positive improvements of our soil when using decomposing wood chips for 5, 10 or 15 years or longer.  Another project would be testing the food value in vegetables grown in wood chips verses vegetables grown in plain soil.
