Pacific Flatheaded Borer: An old pest is new again in Oregon’s rapidly expanding hazelnut industry

Final report for GW19-195

Project Type: Graduate Student
Funds awarded in 2019: $24,825.00
Projected End Date: 09/30/2021
Host Institution Award ID: G145-20-W7503
Grant Recipient: Oregon State University
Region: Western
State: Oregon
Graduate Student:
Major Professor:
Dr. Nik Wiman
Oregon State University
Expand All

Project Information

Summary:

This project addressed knowledge gaps for management of Chrysobothris mali (Horn), Pacific flatheaded borer, (PFB; Coleoptera: Buprestidae) in Oregon hazelnuts. This native pest is particularly damaging in new plantings of tree crops, and recent expansion of hazelnut acreage in Oregon has resulted in major economic impacts. Very little research has been conducted on this pest. Typically, young hazelnut trees (1-2 year old) are targeted for oviposition by the adult females beetles. Literature suggests that PFB are attracted to stress signals emitted by establishing trees (Burke 1929). Female borers find vulnerabilities in the bark to lay their eggs. After hatching form the egg, larvae create galleries in the cambium beneath the bark, typically near the soil line. They may live in the galleries for one or two seasons. The tunneling can result in girdling the of tree.   Trees that survive initial attacks can be severely weakened, risking trunk failure due to wind or nut load. Inadequate knowledge of PFB has resulted in devastating losses of young trees for some growers. The goal of our project was to increase understanding of phenology of PFB and help develop effective management strategies to increase sustainability of the hazelnut industry. Our project had 3 objectives.

Research Objectives:

  1. Develop phenology data for PFB
  2. Develop PFB monitoring traps for monitoring.
  3. Evaluate plant protection strategies against PFB

We were successful in developing phenological data describing the flight period of PFB, which we feel is broadly applicable to western Oregon and can be used to predict when trees will be most susceptible to borer attack. The monitoring strategies we evaluated were relatively unsuccessful, which is similar to past efforts to monitor Chrysobothris spp. with traps. More research is needed to evaluate the effect of trap type, color and potential use of volatile attractants.  We were successful in evaluating plant protection strategies and much of the information generated has been incorporated into published plant protection guidelines for hazelnut growers. We were also able to disseminate results through a workshop, on-farm visits, and through presentations, flyers and other means.

Project Objectives:

Our objectives were designed to provide the most relevant information for management of PFB in young hazelnut orchards. We prioritized research on borer biology and phenology, monitoring, and plant protection. The research formed the basis for Extension resources provided to the industry and a basis for future research projects.

Research objectives:

  1. Develop phenology data for PFB. There is no information on when PFB emerge and attack trees. These data act as the foundation for pest management; identifying when PFB life stages are active and vulnerable to management. We were particularly interested in the period when adult borers were present, because this would represent the timing when growers could take measures to protect trees from oviposition or early larval development.
  2. Develop PFB monitoring traps. There are no known effective monitoring tools to identify PFB populations, and more broadly there have not been effective traps developed for any Chrysobothris species. The development of monitoring traps was improve application timing and limit unnecessary pesticide applications when population counts are below economical thresholds. A sensitive trap could help growers determine if treatments were necessary at all.
  3. Evaluate plant protection strategies against PFB. We evaluated simple physical trunk barriers, deterrents, systemic insecticides, organic, and reduced-risk insecticides as treatments. Grower implementation of efficient protection strategies will lower farmer cost and limit environmental costs of insecticide use.
Timeline:

I’ve uploaded this Gantt Chart timeline:

Gantt Chart

The chart details specific tasks and dates relating to my three objectives: develop phenology data for PFB, develop PFB monitoring traps, and evaluate plant protection strategies against PFB.

I’ve also included educational outreach events and dates of the following: Orchard Pest and Disease Management Conference, Nut Growers Society Meetings, Annual Hazelnut IPM Field Day, and the Entomological Society of America Meeting.

Cooperators

Click linked name(s) to expand/collapse or show everyone's info
  • Joy Henkle
  • Michael Severeid
  • Loren Birkemeier
  • Randy Flaming
  • Darek Czokajlo

Research

Materials and methods:

Obj. 1 Develop phenology data for PFB

We collected trees infested with PFB from collaborating grower orchards during the fall and winter. We considered trees to be infested if they showed signs of sawdust frass or girdling of the trunk, typical characteristics of PFB damage. We remove canopies and roots because borer larvae are typically found close to the soil line or in the lower 24 inches of the trunk. Each end of the trunk is capped with paraffin wax to prevent desiccation and borer mortality. We store infested wood in five-gallon buckets, arranged by grower field, with small holes drilled in the bottom of buckets for rain drainage. Buckets are labeled with location and date collected and individually covered with mesh to prevent borer escape. They are stored outside in field cages at North Willamette Research and Extension Center in Aurora, OR. Data loggers recording temperature and humidity are stored with the wood. In the spring, we begin dissecting a subset of borer sticks to monitor transition from overwintering larvae to pupae and finally adults, then we begin checking for borer emergence twice a week and continue through August. We count and record each emerged borer. At the end of August, we calculate the percent of PFB emergence throughout the season.

emergence cage
Emergence cage housing hazelnut trees infested with flatheaded borer for emergence.
Bucket
Buckets with holes drilled in the bottom and covered with paint strainers were used to contain infested borer wood grouped by site or treatment.

Obj. 2 Develop PFB monitoring traps

We tested the following traps: purple lindgren (12-unit) multifunnel, green lindgren (12-unit) multifunnel, black lindgren (12-unit) multifunnel, clear sticky card, green sticky card, purple sticky card, and black sticky card. In late May, we set up monitoring traps at two collaborating grower orchards. There were three reps at each orchard, with each rep consisting of one purple lindgren (12-unit) multifunnel, one green lindgren (12-unit) multifunnel, one black lindgren (12-unit) multifunnel, one transparent sticky card, one green sticky card, one purple sticky card, and one black sticky card. Each trap contained an ethanol and alpha pinene lure. Purple and green larger sized (12- and 16-unit) multifunnel traps were found more effective in capturing Emerald Ash Borer (EAB), Agrilus planipennis, one of the most infamous and destructive flatheaded borer forest pests, than their smaller counterparts (Francese et al. 2013). The 12-unit multifunnel traps are more desirable because they require less maneuvering and cost less.

We placed the traps along the borders of the orchard separated by 50 feet to limit influence of other traps. Each multifunnel trap was coated with fluon (a water and polytetrafluoroethylene (PTFE)-based liquid), to make the surface of the trap slippery and prevent insect escape. Multifunnel traps coated with fluon caught significantly more EAB than untreated traps (Francese et al. 2013). We hung each trap from a post right next to a tree. We wrapped sticky cards around the trunks of the trees. Traps were monitored weekly through August. Each PFB caught was recorded.

Black Lindgren funnel trap.
Black Lindgren funnel trap.
Green Lindgren funnel trap.
Green Lindgren funnel trap.
Purple Lindgren funnel trap, showing deployment between forested border and young hazelnut orchard.
Purple Lindgren funnel trap, showing deployment between forested border and young hazelnut orchard.
Purple sticky card attached to trunk of young tree.
Purple sticky card attached to trunk of young tree.
Deployment of sticky card on young hazelnut tree.
Deployment of sticky card on young hazelnut tree.

Obj. 3 Evaluate plant protection strategies against PFB

The project team planted weak hazelnut tree whips, or slender and unbranched shoots, into two plots in early spring of 2018 ans 2019. Our preliminary research has shown that planting trees late after dormancy and bud break is an effective way to induce attack by PFB. We've established one plot at North Willamette Research and Extension Center and a second plot near a collaborating grower's orchard in Newberg, OR. Each plot consisted of four replications, 10 treatments and a control per replication, and five trees per treatment totaling 220 trees. We randomized the treatments in each replication. Treatments varied in ingredient, rate, timing and application. We painted the trunks of trees except the untreated control with white latex paint, a common practice for newly planted trees to prevent sunburn. We gave minimal water to trees to induce stress. Timing of chemical applications were based on the adult emergence we found in our field cages. Spray applications were applied using a spray gun fitted with a solid cone diffuser and D8 nozzle attached to a hose reel. An air compressor (Rigid 4.5 gal. air compressor) powered by a gas generator (Ryobi 2,300-watt) was used to achieve the adequate pressure of 40 psi. We assessed borer damage in the fall/winter of 2018 to 2019. The presence of galleries, tunneling caused by the borer, was recorded.

Anthony Mugica testing flatheaded borer management strategies.
Anthony Mugica testing flatheaded borer management strategies for newly planted hazelnuts at a cooperator farm.
Research results and discussion:

Obj. 1 Develop phenology data for PFB

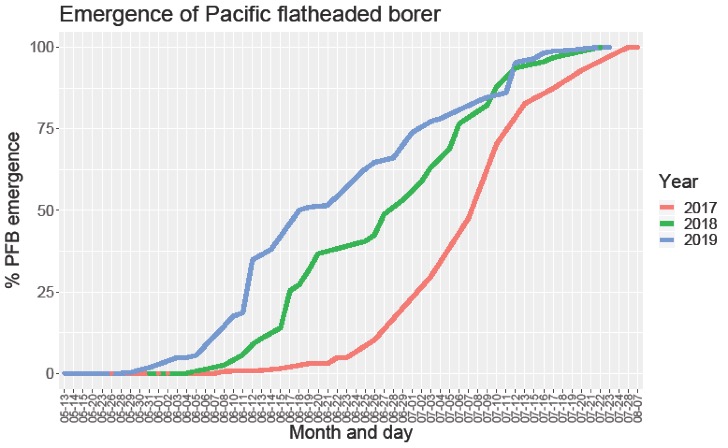

We saw consistent results of PFB emergence from infested wood collected from grower orchards over a three-year period. As the graph illustrates, emergence of PFB was recorded from late May through early August. Consistent emergence results help growers and managers better understand the period where knowledge of when PFB are active and thus they can plan their management actions accordingly. Unfortunately, emergence of PFB from wood in 2020 was very limited and did not contribute new data to the phenology curves already generated.

PFB Emergence Data



First and last recorded emergence by degree day Degree Day (DD) accumulation for the first and last emergence dates of PFB from 2017 – 2019. Degree days were calculated from 1 January using 50°F base temperature. DD accumulation were calculated based on the day prior to date of first emergence.
First and last recorded emergence by degree day Degree Day (DD) accumulation for the first and last emergence dates of PFB from 2017 – 2019. Degree days were calculated from 1 January using 50°F base temperature. DD accumulation were calculated based on the day prior to date of first emergence.

Obj. 2 Develop PFB monitoring traps

Season-long monitoring at two cooperator sites in 2019 resulted in just two captures of PFB. No PFB were recorded on the sticky card traps that were wrapped around the trunks of the trees. The only captures were on the Lingren funnel traps. It was unclear if volatile lures played any kind of role as unbaited Lindgren funnels worked as well as baited traps. New attractant and trap combinations are needed to develop an efficient monitoring approach. It is unclear if a few number of PFB females are responsible for the damage in orchards, in which case we may not expect to capture many adult PFB.

Monitoring trap catches 2019 Commercially available 12-unit Lindgren multiple funnel traps coated in fluon (Chemtica, Santo Domingo de Heredia, Costa Rica), and 7x5 inch sticky card traps (Alpha Scents, West Linn, OR) were tested. Two commercially available attractants, Ethanol UHR Lure (Alpha Scents, West Linn, OR) and Alpha-Pinene UHR Lure (Alpha Scents, West Linn, OR) were tested with the 12-unit multiple funnel traps.
Monitoring trap catches 2019 Commercially available 12-unit Lindgren multiple funnel traps coated in fluon (Chemtica, Santo Domingo de Heredia, Costa Rica), and 7x5 inch sticky card traps (Alpha Scents, West Linn, OR) were tested. Two commercially available attractants, Ethanol UHR Lure (Alpha Scents, West Linn, OR) and Alpha-Pinene UHR Lure (Alpha Scents, West Linn, OR) were tested with the 12-unit multiple funnel traps.
Monitoring trap catches 2020 Commercially available 12-unit Lindgren multiple funnel traps coated in fluon (Chemtica, Santo Domingo de Heredia, Costa Rica) were tested. Three attractants, one commercially available plant volatile lure for noctuid moths (Alpha Scents, West Linn, OR), and two formulated lures using dodecane and heptadecane (Alpha Scents) were tested with the 12-unit multiple funnel traps. Note: Attractants were added to traps 07/14/20.
Monitoring trap catches 2020. Commercially available 12-unit Lindgren multiple funnel traps coated in fluon (Chemtica, Santo Domingo de Heredia, Costa Rica) were tested. Three attractants, one commercially available plant volatile lure for noctuid moths (Alpha Scents, West Linn, OR), and two formulated lures using dodecane and heptadecane (Alpha Scents) were tested with the 12-unit multiple funnel traps. Note: Attractants were based on volatile extractions from damaged trees in 2019 and were added to traps 07/14/20.

Obj. 3 Evaluate plant protection strategies against PFB

Many growers apply the systemic insecticide imidacloprid, or another neonicotinoid, against PFB. While neonicotinoid insecticides have been implicated in pollinator declines around the world, hazelnuts are wind-pollinated and not attractive to bees other than for pollen in winter. We regard these materials as safe to use on hazelnuts and much preferable to trunk sprays of chlorpyrifos or pyrethroid materials. In 2019 we saw that neonicotinoids are very effective in preventing attack by PFB, particularly imidacloprid and clothianadin. We also evaluated a numbered compound from the diamide class of insecticides in 2019. The diamides are largely regards as softer, more targeted insecticides and this result gave us excitement that diamides could represent a more sustainable alternative to neonicotinoids. In 2020, we tested three diamide materials (cyantraniliprole, cyclaniliprole, and chlorantraniliprole) and found that they indeed show promise as systemic plant protectants against PFB. Many treatments were made as single vs. multiple applications and typically there was little additional control provided by increased number of applications. We also found that a mixture of white latex paint and kaolin clay painted onto trunks was equally effective as insecticides in preventing attack by PFB. Similarly, plastic trunk guards seemed to help reduce damage by PFB. The product Actigard also reduced PFB infestation, which is interesting as this compound is reported to increase plant resistance to pests and disease.

Plant protection results 2019 Plant protection results per treatment illustrating the average percentage decrease (Estimates) in borer damage total with respect to the control.
Plant protection results 2019. Plant protection results per treatment illustrating the average percentage decrease (Estimates) in borer damage total with respect to the control.



Participation Summary
4 Farmers participating in research

Educational & Outreach Activities

35 Consultations
4 Curricula, factsheets or educational tools
1 Journal articles
1 Tours
7 Webinars / talks / presentations
1 Workshop field days

Participation Summary:

750 Farmers
250 Ag professionals participated
Education/outreach description:

Curricula, factsheets or educational tools: these examples give an overview of the issues we're facing with Pacific flatheaded borer and the research we're conducting to mitigate its impact.

  • Flyer
    • 2019 Summer Pacific Flatheaded Borer Workshop
    • 2019 Nut Growers Society Summer Hazelnut Tour
    • 2020 Nut Growers Society Winter Meeting
  • Poster
    • 2020 Nut Growers Society Winter Meeting

Webinars, talks and presentations:

  1. A Mugica, H Andrews, E Rudolph, and NG Wiman. 2020. Biology and management of the Pacific flatheaded borer in hazelnuts. Annual Meeting of the Entomological Society of America, Section P-IE, Student Competition 10 minute paper. Virtual meeting. Nov 11-25.
  2. T Keyes, H Andrews, E Rudolph, A Mugica, and NG Wiman. 2020. Biology and morphometrics of the Pacific flatheaded borer. 79th Annual Pacific Northwest Insect Management Conference. Portland, OR. 7 Jan
  3. T Keyes, H Andrews, E Rudolph, A Mugica, and NG Wiman. 2020. Biology and morphometrics of the Pacific flatheaded borer. 94th Annual Orchard Pest and Disease Management Conference. Portland, OR. 10 Jan
  4. Mugica, A, H Andrews, E Rudolph, T Keyes, K Transue, and NG Wiman. 2020. Biology and management of the Pacific flatheaded borer in hazelnuts. 94th Annual Orchard Pest and Disease Management Conference. Portland, OR. 8 Jan.
  5. Andrews, H, NG Wiman, J LaBonte, E Rudolph, and A Mugica. 2019. Caught in the act: documenting parasitoids through visual media. 103rd Annual Meeting of the Pacific Branch of the Entomological Society of America. San Diego, CA. 1 April.
  6. Wiman, NG, A Mugica, H Andrews, E Rudolph. 2019. Pacific flatheaded borer, an old problem for orchard establishment revisited. 93rd Annual Orchard Pest and Disease Management Conference. Portland, OR. 10 Jan.
  7. Mugica, A, H Andrews, NG Wiman. 2018. Biology and management of the flatheaded borer in hazelnuts. Orchard Pest and Disease Management Conference. Portland, OR. 10 Jan.

Workshop / field days:

  1.  2019 Summer Pacific Flatheaded Borer Workshop
    • The workshop took place at the North Willamette Research and Extension Center.
    • Nik Wiman (Orchard Crop Specialist - Oregon State University), Dr. Jhalendra Rijal (IPM Advisor - University of California Cooperative Extension) and Anthony Mugica (Graduate Student) gave presentations and then we gave a field tour of our emergence trial and plant protection research plots. (48 attendees).

Outreach:

  1. Oregon State University Hazelnut Extension Facebook page @OSUHazelnutExtension
    • Multiple posts pertaining to Pacific flatheaded borer
  2. A standalone Extension document for the Oregon State University Extension Catalog illustrating the results from this project - in progress.
  3. Research findings have been incorporated into the Oregon State University Hazelnut Pest Management Guide and the PNW Insect Management Handbook.
  4. Multiple farm visits, diagnostic services.

Proceedings:

  1. Wiman, NG, H Andrews, A Mugica, E Rudolph, and T Chase. 2019. Pacific flatheaded borer ecology and knowledge gaps. P.28 In Flatheaded borer workshop conference proceedings. Tennessee State University, Otis L. Floyd Nursery Research Center, McMinnville, TN. July 1-2. https://southernipm.org/partners/working-groups/wood-borers/flatheaded-borer/

Journal articles:

  1. Wiman, NG, H Andrews, A Mugica, E Rudolph, and T Chase. 2021. Biology and phenology of Pacific flatheaded borer in Pacific Northwest hazelnuts. (In progress).

Project Outcomes

1 Grant received that built upon this project
Did this project contribute to a larger project?:
Yes
20 New working collaborations
Project outcomes:

Air blast spraying is a common practice for applying inseceticides against PFB. The adverse effects caused from insecticide drift is an issue with this application method. These methods typically call for multiple applications throughout the active PFB season. For neonicotinoids, we've analyzed two alternative imidacloprid application methods, pre-soaking trees and root drench, which essentially eliminates drift and is only applied once in a season. It's possible that neonicotinoids may not always be an option and we don't want to rely on just one chemistry. Our diamide and organic treatments may act as a safer replacement to neonicotinoids in the future.

We examined  single vs. multiple and reduced rate applications and found that they may provide just as much control. Pesticide applications are a substantial expense for farmers. If single and or reduced rate applications are found to be just as effective as multiple applications then we can help lower grower costs while minimizing pesticides introduced to the environment.

Knowledge Gained:

Current management practices against PFB rely on neonicotinoids, typically imidacloprid. The use of neonicotinoids has raised major concerns for their adverse effects towards beneficial insects and the environment. This led us to looking for replacements, including diamides and organic options. We learned that simple cultural practices such as painting trees may represent the most sustainable option for PFB management. Combined with monitoring data, we feel that growers have tools for sustainable management of this pest. Moving forward, we continue to search for more sustainable opportunities.
